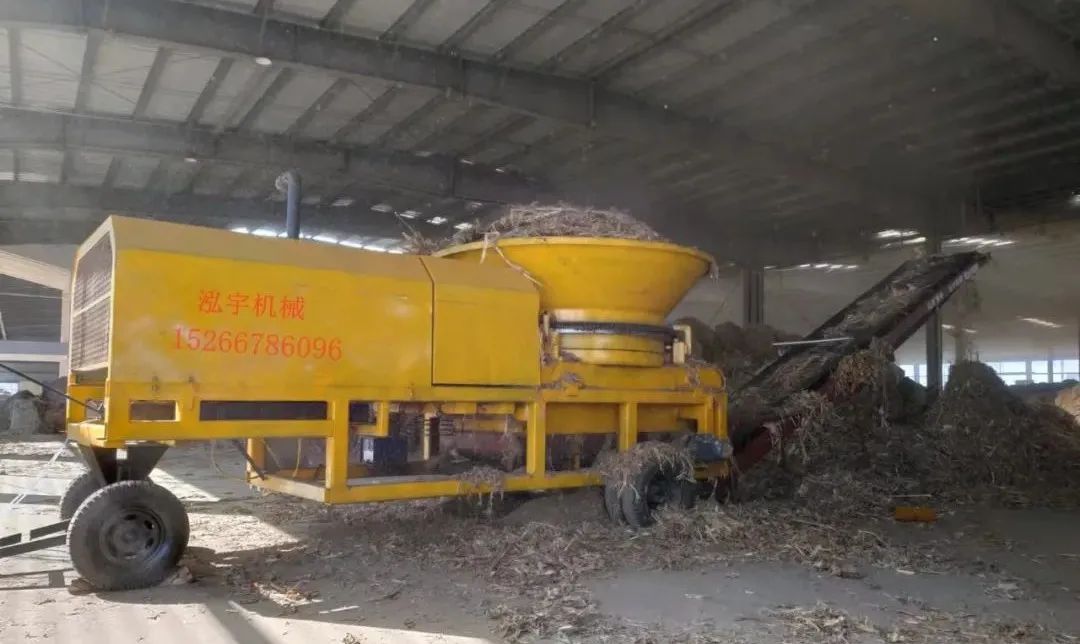

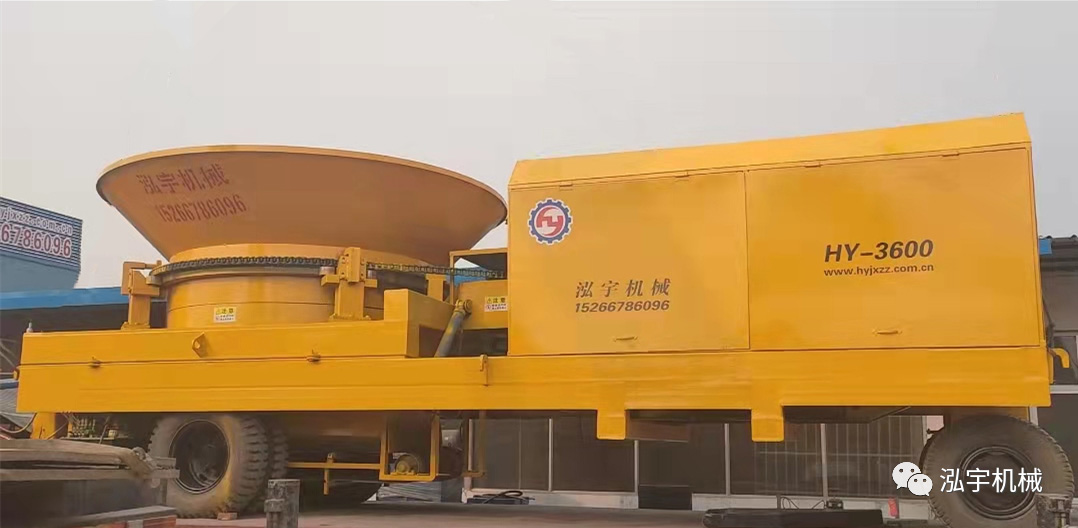

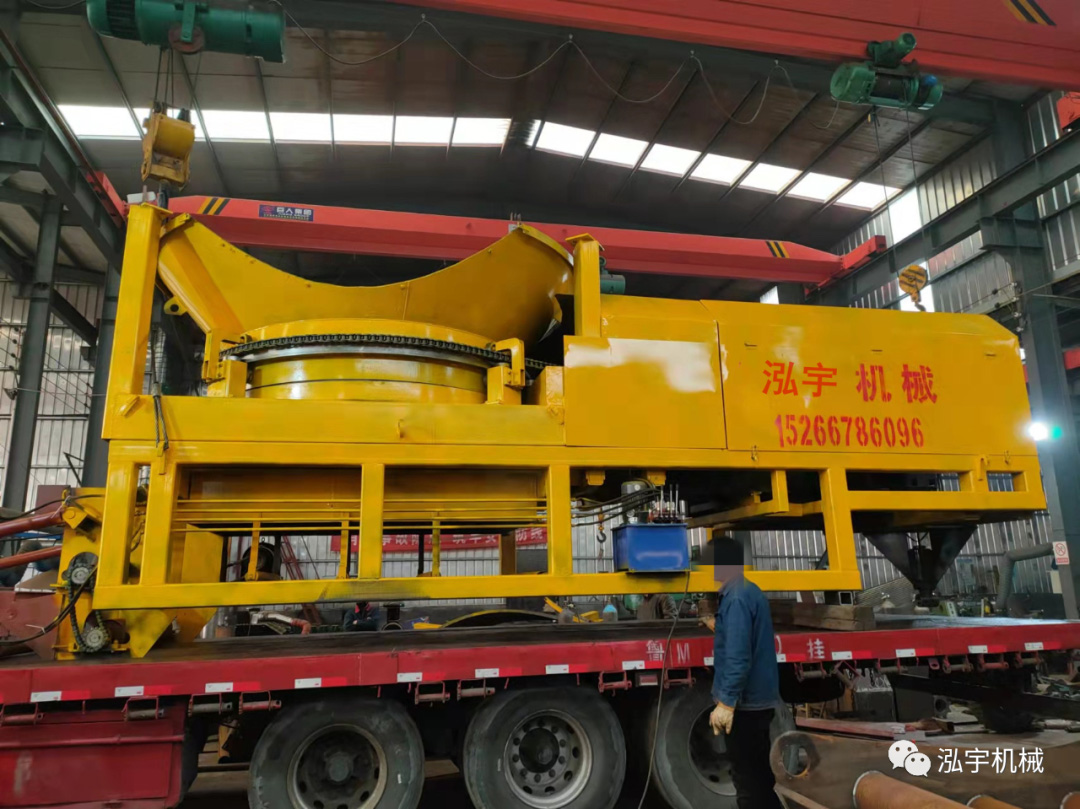

Hongyu Machinery HY3600 Mobile Wooden Pier Crusher

Author： 山东泓宇机械制造有限公司 Time：2023-07-03 Read：928

Hongyu Machinery HY3600 Wooden Pier Crusher is a rotary wood crusher, which includes a frame, a rotating material box driven by a material box driving device, and a rotor driven by a rotor driving device. The rotor is located below the rotating material box, and the feeding port is offset from the center of the feeding hopper.

The beneficial effect lies in:

1. This crusher has a wide range of applications, and the offset feeding port combined with the feeding teeth installed on the inner wall of the feeding hopper plays an auxiliary role in feeding. This machine can be used for crushing large-diameter materials such as tree stumps, as well as for crushing packaged straw, with the advantages of fast feeding and high efficiency.

2. The hydraulic material box flipping device can achieve large angle flipping when the machine needs maintenance. After flipping, the rotor part is exposed, making maintenance operation convenient.

3. It adopts a multi blade rotor knife roller with spiral arrangement of knife heads, which is more labor-saving, more thorough in breaking materials, and improves the service life of the crushing knife, reducing the use and maintenance costs of the crushing knife.

This crusher has successfully saved users the need for a chopping machine. In the future, users will no longer need to use a chopping machine to split the tree roots before using a wood chip machine to crush them. Now, only one chopping machine is needed.
